VIBRATION ISOLATION AND NOISE CONTROL SOLUTIONS

Generator Vibration Isolation and Noise Control Experts

Vibration Isolation Mounts are used for elastic mounting of machines, generators, pumps, electrical panels, compressors, engines and many other industrial machinery. The Vibration Isolation Mounts isolate the vibrations generated in the machine frame. We design and manufacture these Vibration Isolation Mounts in India. These Vibration Isolation Mounts are used for generators, pumps, emergency power units and stationary diesel engines. The Vibration Isolation Mounts are suitable for damping vibrations in machines weighing from 10 Kgs to 20,000 Kgs.

On Isolating the machines using our Vibration Isolation and Shock Control Solutions, the vibrational movements are damped by the elastomer or pneumatic damper. The Vibration Isolation Mounts can be used in compression, shear and tension. The Vibration Isolation Mounts are designed to absorb vertical and horizontal vibrations in these machines. Specialized designs of Vibration Isolation Mounts are also useful for isolating rotational / torsional vibrations produced in rotating/reciprocating machines.

Various Vibration Isolation & Noise Control Solutions

Major Advantages of our Vibration Isolation and Shock Control Solutions:

● Vibration is produced by all industrial machinery. It is therefore essential to block all high amplitude vibrations to machine frame which can then be further transmitted to the building structure.
● Vibration Isolation Mounts damp vibrations which can damage critical shafts, gears and surfaces in machinery.
● Vibration Isolation Mounts with fail-safe design provide protection against machinery toppling while transportation.
● Vibration Isolation Mounts are provided with option of grouting to bottom floor or frame for safe mounting preventing any machine movement.

Our Vibration Isolation and Noise Control Solutions include vibration isolation mounts in many different sizes and designs as per your location and equipment requirements. On mounting the machines on the Vibration Isolation Mounts, the vibrational movements are damped by the elastomer or pneumatic damper. The Vibration Isolation Mounts are designed to absorb vertical and horizontal vibrations. Some Vibration Isolation Mounts are designed specifically for rotating machines like gensets, compressors, motors and pumps. The rotating vibrations in these machines are effectively damped by using our Vibration Isolation Mounts.

Usage of Vibration Isolation and Noise Control Solutions in Industrial Applications:

★ Vibration Isolation Solutions for isolating noise and vibrations in compressors, gensets, pumps, engines etc.

★ Vibration Isolation Mounts reduce vibrations in Centrifugal Machines.

★ Electrical Transformers are isolated from structure using Vibration Isolation Mounts.

★ Pneumatic Vibration Isolation Mounts isolate very low frequency vibrations.

★ Vibration Isolation Mounts are very useful for controlling HVAC vibrations.

★ Shot Blasting Machines are installed on Vibration Isolation Mounts to control and isolate noise and vibration.

★ Testing Rigs and vibration testing equipments are installed on Vibration Isolation Mounts to isolate external vibrations.

★ Generator Engine radiator is mounted on Vibration Isolation Mounts for best performance and long-life.

★ Pumps are mounted on Vibration Isolation Mounts to isolate the vibrations generated while pumping heavy industrial fluids.

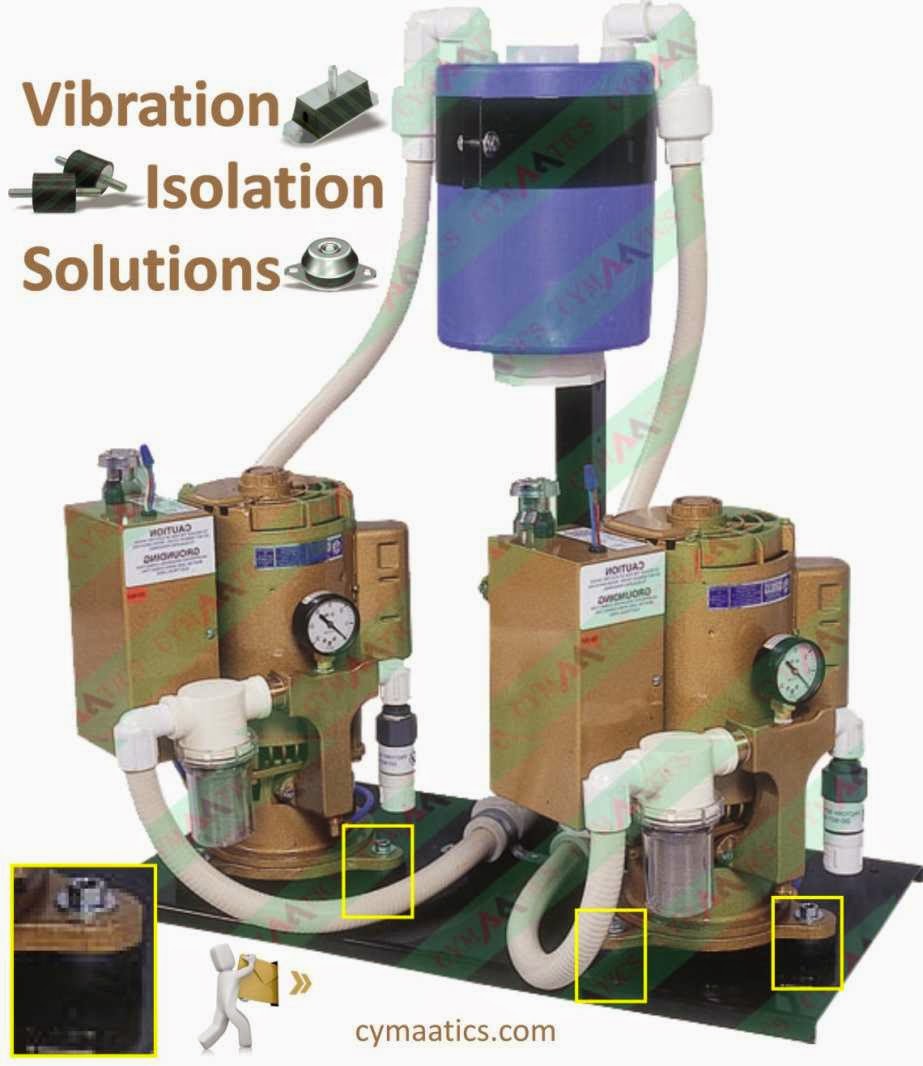

Vibration Isolation in Surgical Pumps

★ Air conditioning equipments are mounted on Vibration Isolation Mounts to reduce vibrations from entering building structures.

★ Vibration Isolation and Noise Control Solutions for Cab seating / passenger seating / crew seating.

★ Sensitive electronics equipment are isolated from vibration using our sophisticated vibration isolation and noise control solutions.

★ Vibration Isolation Mounts are used for mounting sensitive radio and engineering equipments.

★ Sensitive communications equipment are mounted on Vibration Isolation Mounts.

★ Sensitive electrical and electronic equipments are mounted on vibration isolated pads.

★ Sensitive computer equipment employ our Vibration Isolation and Noise control Solutions.

★ Moving vehicle mounted LCD screens and panels can be isolated from vibrations using Vibration Isolation Mounts.

★ Cab vibration isolation for passenger comfort using Vibration Isolation Mounts.

★ Exhaust systems have high vibration due to large gas exhausts and should be mounted on Vibration Isolation Mounts.

★ Pipe Hangers and other Vibration Isolation Solutions are used for mounting Compressed Air / Fluid transfer pipes creating massive vibrations.

Vibration Isolation Solutions from CYMAATICS

Visit us at http://www.cymaatics.com for more details.

Anti-Vibration Pads for Machinery - Why to use them and How to select the right Anti-Vibration pads for your machine...?

Anti-Vibration Pads are used for elastic mounting of machines, generators, pumps, electrical panels, compressors, engines and many other industrial machinery. The Anti-Vibration pads isolate the vibrations generated in the machine frame. We design and manufacture these Anti-Vibration Pads in India. These Anti-Vibration Pads are used for generators, pumps, emergency power units and stationary diesel engines. The Anti-Vibration Pads are suitable for damping vibrations in machines weighing from 10 Kgs to 20,000 Kgs.

On mounting the machines on Anti-Vibration Pads, the vibrational movements are damped by the elastomer or pneumatic damper. The Anti-Vibration Pads are designed to absorb vertical and horizontal vibrations in these machines.

WHY and WHERE of these ANTI-VIBRATION PADS:

★ Anti-Vibration Pads are useful in vibration damping in compressors, gensets, pumps, engines etc.

★ Anti-Vibration Pads reduce vibrations in Centrifugal Machines.

★ Electrical Transformers are Isolated from structure using Anti-Vibration Pads,

★ Pneumatic Anti-Vibration Pads isolate very low frequency vibrations,

★ Anti-Vibration Pads greatly reduce vibrations in Pumps / engines.

★ Anti-Vibration Pads are very useful for controlling HVAC vibrations,

★ Shot Blasting Machines are installed on Anti-Vibration Pads to control and isolate noise and vibration,

★ Testing Machines and equipments are installed on Anti-Vibration Pads to isolate external vibrations,

★ Engine radiator is mounted on Anti-Vibration Pads for best performance and long-life.

★ Air conditioning equipments are mounted on Anti-Vibration Pads to reduce vibrations from entering building structures.

★ Vibrations to Cab seating / passenger seating / crew seating are greatly reduced using Anti-Vibration Pads for mounting these seats.

★ Sensitive electronics equipment are always placed on small Anti-Vibration Pads.

★ Anti-Vibration Pads are used for mounting sensitive radio equipment.

★ Sensitive communications equipment are mounted on Anti-Vibration Pads.

★ Sensitive electrical equipment should always be mounted on Anti-Vibration SilentBlock Pads for superior working life.

★ Sensitive computer equipment are mounted using Anti-Vibration Pads.

★ Sensitive LCD screens can be isolated from vibrations using Anti-Vibration Pads.

★ Cab vibration isolation for passenger comfort using Anti-Vibration Pads.

★ Exhaust systems have high vibration due to large gas exhausts and should be mounted on Anti-Vibration Pads.

★ Pipe hangers Anti-Vibration Pads are used for mounting Compressed Air / Fluid transfer pipes creating massive vibrations.



HOW to choose the right ANTI-VIBRATION PAD for your machine ?

◆ Select the Industrial Machine - Generator, Compressor, Pump, Motor etc. which needs vibration damping.

◆ Select the number of mounting locations for the machine along with all attached accessories. This number of mounting locations is usually the number of machine feet or machine foundation bolts supplied with the machine.

◆ Compute the total weight of the machine and then calculate the static and dynamic weight of the machine at each mounting point. Provide these weights to us for selecting the correct Anti-Vibration Pad for your application.

◆ Check for any special parameters for the Anti-Vibration Pads - The Anti-Vibration Pads can be made for mobile applications, the Anti-Vibration Pads could be suitable for external operation exposed to weather and climatic conditions, the Anti-Vibration Pads can be made rigid or extra soft as per the application, the Anti-Vibration Pads could be exposed to very high water, acid, oil or diesel flooding, the Anti-Vibration Pads could be made for special mobile laboratory applications with stiff grouting and movement constraints.

◆ Specify the location of the machine where the Anti-Vibration Pads are to be mounted - This can be on the ground or suspended floors.

◆ Specify the bolt-size or mounting requirements for the machine where the Anti-Vibration Pads are to be mounted.

We can offer all different type of Anti-Vibration Pads stated above as per your requirements. We can provide many standard sized Anti-Vibration Pads and can even provide customized designs as per the customer's requirements. The above list of applications and advantages of Anti-Vibration Pads gives a brief introduction to the various application based usage of anti-vibration tables and pads.  Kindly contact us for discussing how our Anti-Vibration Pads could be designed for your sensitive measuring/reading/laboratory space application.

CYMAATICS PRODUCTS LLP
Customized Designs of Anti-Vibration Pads.
Ph: +91-9717744224
E-mail: sales@cymaatics.com
Website: www.cymaatics.com

Vibration Isolation Tables - Why are they indispensable in Laboratories?

CYMAATICS Vibration Isolation Table (VIT) is mainly used in Laboratories as Work Station for PASSIVE VIBRATION ISOLATION for sensitive equipment like Metrology equipments , Laser, Analytical Balances, Optics, Optical and Electronic Scales, Medical Equipment and measuring instruments. These precision Vibration Isolation Tables or VITs are also used in Metrology Rooms / Laboratories for measurements of very precise components like roundness testers, contour measuring machines, gear measuring machines, surface measuring machines, etc. The top working surface of Vibration Isolation Table (VIT) can have very precise granite top working surface conforming to Grade ‘II” or Grade ‘I” or Grade ‘0’ flatness accuracy as per DIN – 876 or any other Customer specified surface flatness accuracy.

The Vibration Isolation Table (VIT) has feature of low frequency isolation and additional feature of auto-leveling of Table Surface. Surface Table can be isolated from vibrations up to (a) Vertical natural frequency approximately 4.0-6.0 Hertz or better and (b) Horizontal natural frequency approximately 5.0-8.0 Hertz or better.

Typical Applications of Vibration Isolation Tables:

1) VITs or Vibration Isolation Tables are used for placing Analytical Balances for ultra-senitive weighing applications.

2) Contour Testers and Roundness Testers having very precise readings should be placed on Vibration Isolated Tables for greater testing accuracy.

3) Microscope and other optical instruments can be placed on our ultra-sensitive Vibration Isolation Tables for very accurate and crisp optical results.

4) Hardness Testers should be placed on Vibration Isolated Platforms for superior, accurate and repetitive results.



The major advantages of using Vibration Isolation Tables in the above applications are:

● Vibration is produced by all electrical devices and fixtures. It is therefore essential to block all non-essential vibrations to laboratory instruments for correct readings.

● Vibration can damage critical probes and surfaces in sensitive laboratory equipments.

● Vibration Isolation Tables can help the sensitive laboratory equipment to obtain results correct to their smallest least counts.

● Vibration Isolation Platforms provide system mass to the equipment and provide good laboratory aesthetics.

● Vibration Isolation Tables can be provided as per your custom location and size specifications for good Laboratory usage.

● Vibration Isolation Tables absorb the passive vibrations coming from various external sources and the equipment on top remains undisturbed - as if "floating-in-air".

● Vibration Isolation Tables with pneumatic mounts below the work surface are highly successful in isolating all vibration above the 10-12Hz vibration range. This typically includes all electrical vibration at 50Hz.

● Vibration Isolation Tables are also very useful for placing sensitive instruments at places near very high vibration disturbances due to human movement or heavy vehicle movement like highway or railway track.

We can provide many standard sized Vibration Isolation Tables and can even provide customized designs as per the customer's requirements. The above list of applications and advantages of Vibration Isolation Tables gives a brief introduction to the various application based usage of vibration isolated tables.  Kindly contact us for discussing how our Vibration Isolation Tables could be designed for your sensitive measuring/reading/laboratory space application.
